S 3
Your S3 Object Storage to Tape complete solution

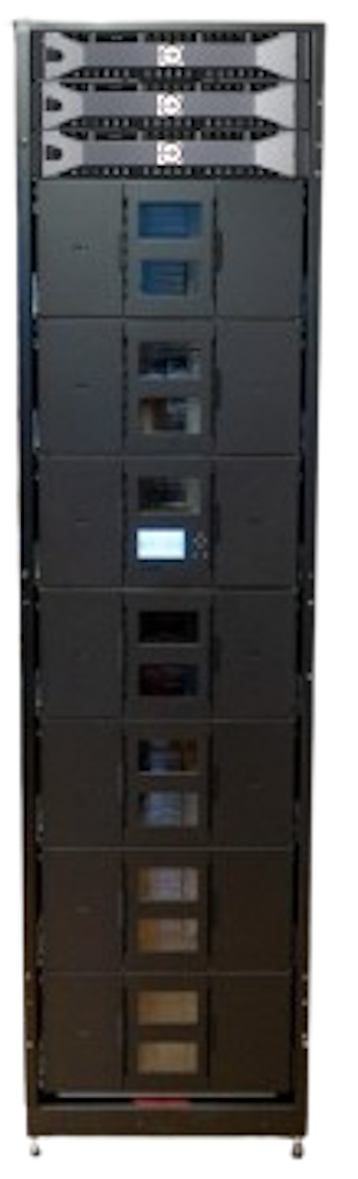

The ORION S3 already comes with an integrated S3-to-tape gateway in the form of an S3 appliance. The appliance is housed directly in the library rack. The appliance is equipped with a PoINT Archival Gateway, a corresponding server and the necessary storage cache. The ORION S3 starts with 974 tape slots and 3 LTO-FH drives or with 920 tape slots and 21 LTO-FH drives. Other configurations are of course possible. Thanks to the S3 head, the ORION S3 can be scaled in width to several 1,000 tape slots.
Special features of the ORION S3
In the ORION S3, the first 6 height units are left free for the installation of the PoINT Archival Gateway Appliances. The libraries are delivered complete with the installed and preconfigured PoINT Archvial Gateway Appliance through our Axians logistics center. The standardized S3 interface allows data to be written to tape quickly and easily. With the PoINT Archival Gateway the ORION can be scaled to up to 8 tape libraries. This means that upto 8.779 tape slots can be served. The PoINT Archival Gateway Appliances are manufactured by our partners Boston-Server and RNT. The Appliances are also available with Dell Technologies Hardware.
Technical information ORON S3
| Form factor | 21″ rackmount |
| Number of modules | 7 |
| Possible modules | Base Module, Drive Expansion, Tape Expansion |
| Total height units of the tape library | 42 |
| Total height units for the S3 object store to tape software | 6 |
| Total height units of the complete solution | 48 |
| Maximum number of tape slots | 974 |
| Number of drives per module | 3 Full Height |
| Maximum number of drives | 21 |
| Connection options for drives | FC or SAS |
| Supported drive generations | LTO 8, LTO 9 ff. |
| Number of power supplies | 2 per Modul (Base und Drive Expansion) |
| S3 Object Store to Tape Software | PoINT Archival Gateway |
| Full scalable | Upto 7 ORION libraries each with 1.115 tape slots and one command library with 974 tape slots. That results upto 8.779 tape slots or 158,022 PB LTO 9 uncomprimized data and upto 190 LTO-FH-Drives |
Scalable
Thanks to its modular structure, the ORION S3 is easily scalable. Due to its nature, it can be flexibly configured for every use case. In conjunction with the PoINT Archival Gateway, several ORION systems can be combined into a library. There are several thousand tape slots available.
Reliable
Thanks to the high quality standards of BDT and PoINT, ORION S3 is one of the most reliable tape solutions on the market. Permanent and ongoing endurance testing ensures one of the highest quality standards. The complete solution is designed, developed and manufactured in Germany.
Cost efficient
One of the greatest strengths of the solution is their cost effectiveness. Compared to other storage media, tapes offer unbeatable value for money per terabyte. The ORION S3 provides excellent value for money per terabyte. Special maintenance models further enhance cost efficiency.
Schema ORION S3 with 8 libraries
In order to optimize the ORION S3, BDT Media Automation GmbH has entered into a strategic technology partnership with PoINT Software & Systems GmbH. This creates an optimal connection between software and hardware. BDT – PoINT – COMBACK – a strong partnership for the future of tape.
